MOQ: 1,000 MetersLANKABLE Bunched Copper Wire
Copper wire coated with a thin layer of tin to enhance corrosion resistance and solderability in electrical/marine applications.

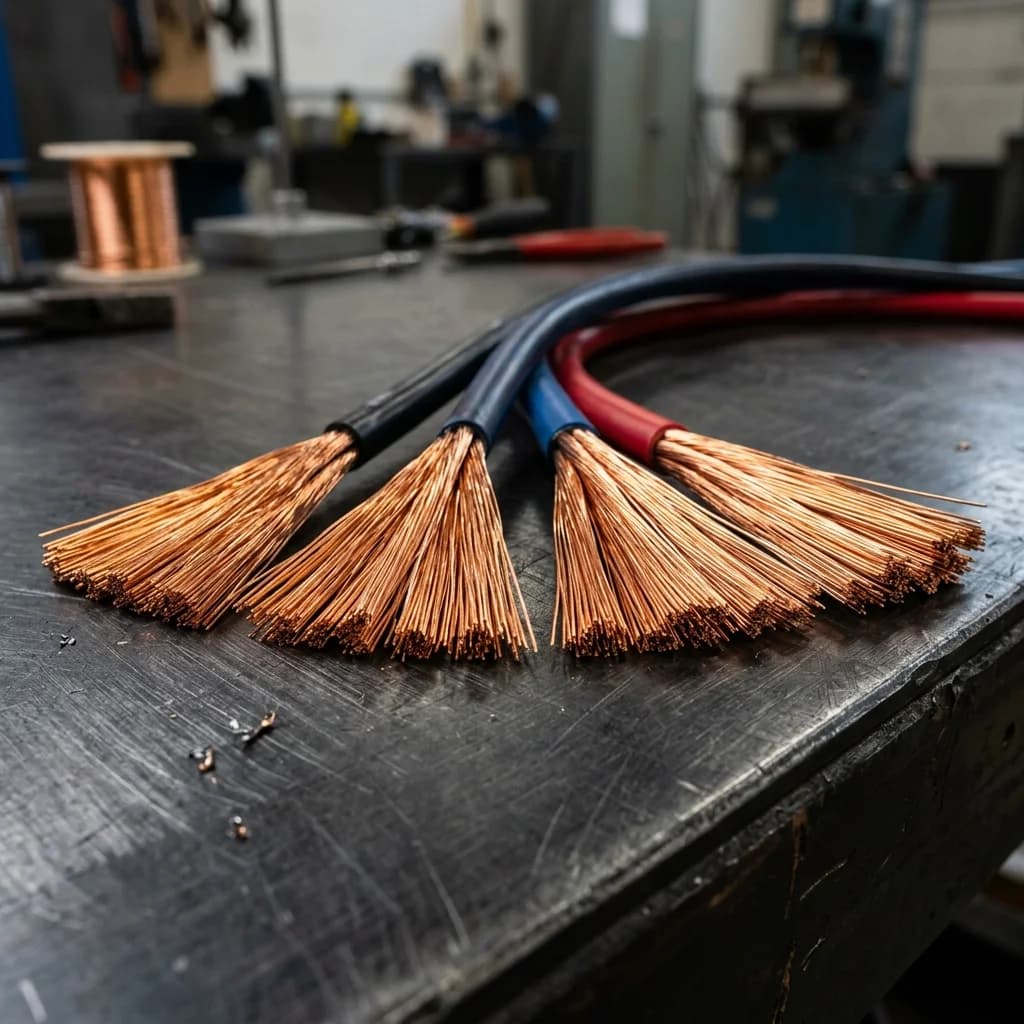

Visual Render
External Sheathing & Lay Layout

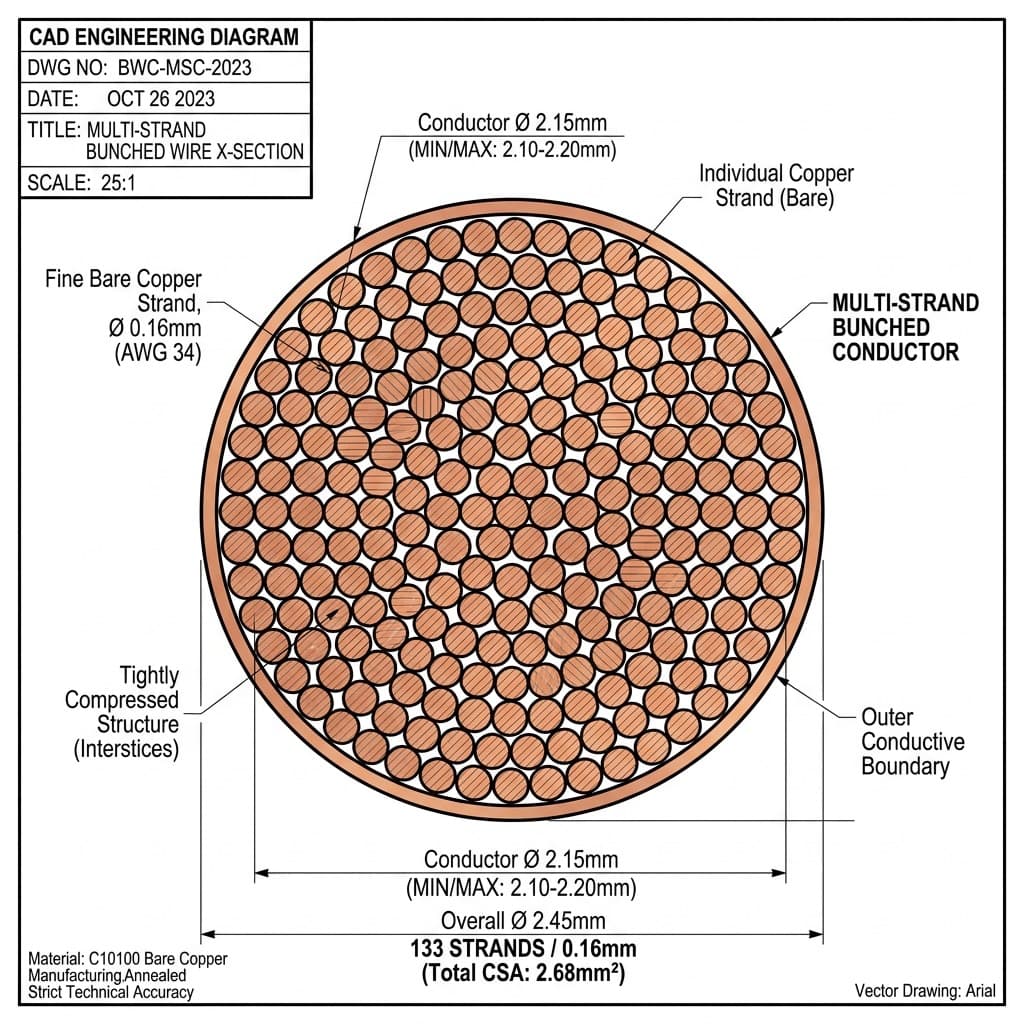

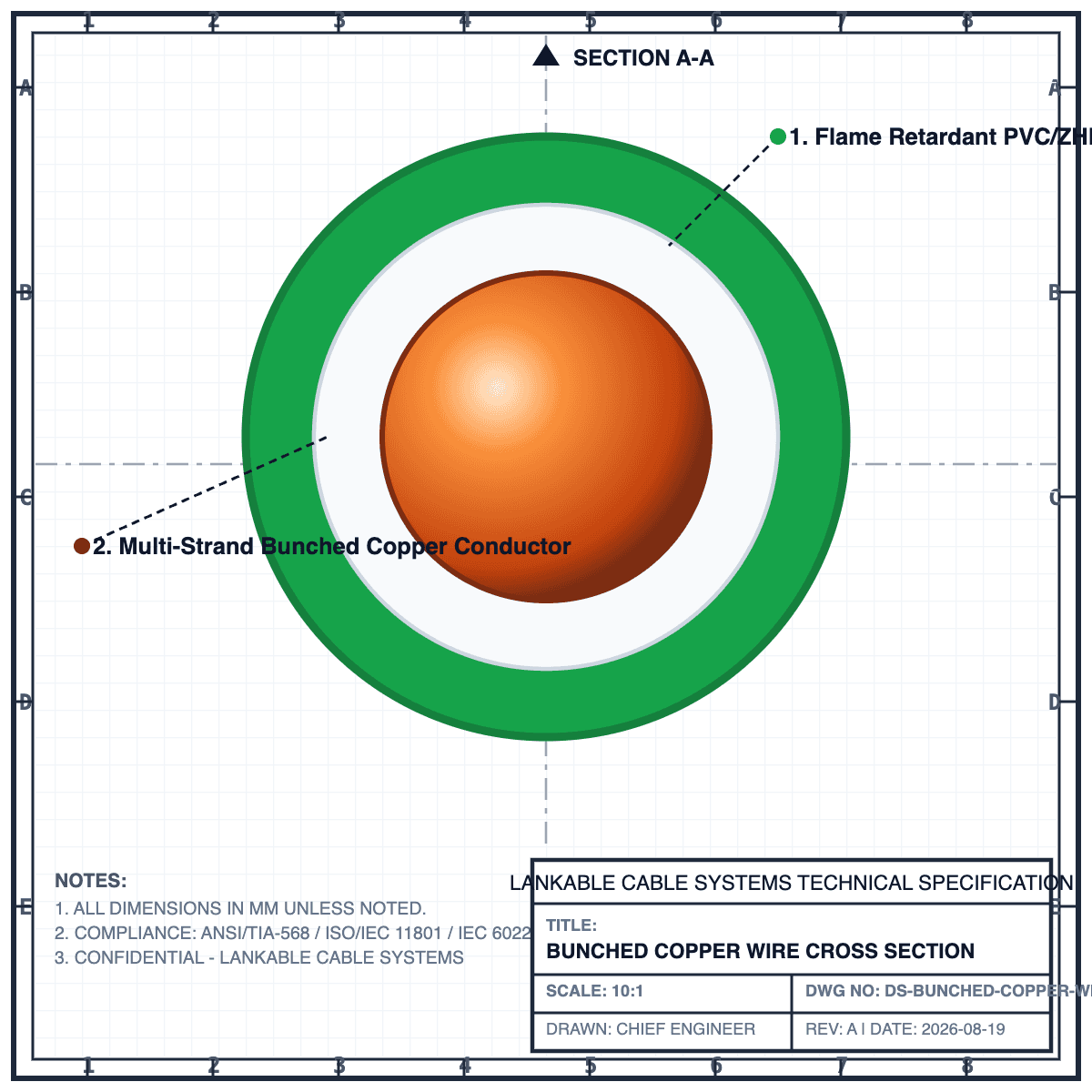

CAD Cross-Section
Internal Shielding & Core Layout

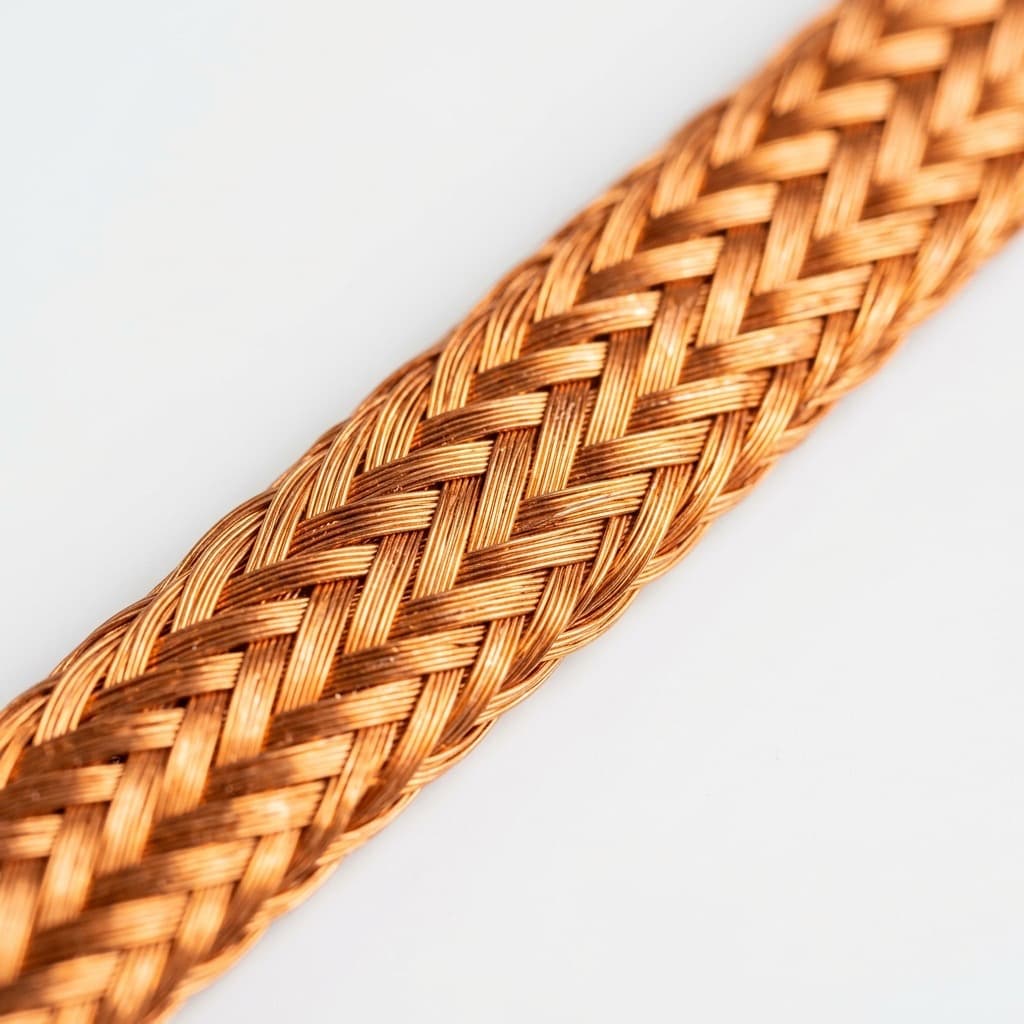

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- 99.97% high-purity electrolytic grade copper
- Uniform conductor gauge and diameter tolerances
- High electrical conductivity exceeding 101% IACS
- Annealed soft temper for outstanding winding flexibility
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 99.97% Pure Electrolytic Annealed Copper
- Insulation
- None (Bare Wire)
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
- Conductivity
- > 101% IACS
- Class / Type
- Bunched Copper Wire
- Material
- ETP Copper (99.9% Pure)
- Wire Diameter
- 0.20 mm
- Nominal Weight
- 0.279 kg per 1000m
- Electrical Conductivity
- 100% IACS
- Tensile Strength
- 220-250 N/mm²
